多后端存储设计-备份降级策略 ​

使用多后端存储的设计，为大模型应用提供高可用性，容错性和持久性的对话历史存储，通过结合快速主数据库、持久备份和预写日志（WAL）来确保大模型应用的聊天历史永不丢失 - 即使在后端数据库出现故障或网络中断的情况下也是如此

一、为什么需要多后端 ​

  • 弹性：如果主数据库不可用，会自动切换到备份进行读取
  • 持久化：所有的写入操作首先记录在 WAL 中，即使备份暂时不可用，也会保证不会丢失任何消息
  • 一致性：WAL 确保所有的消息最终都会持久化到备份中，提供强大的持久化保证

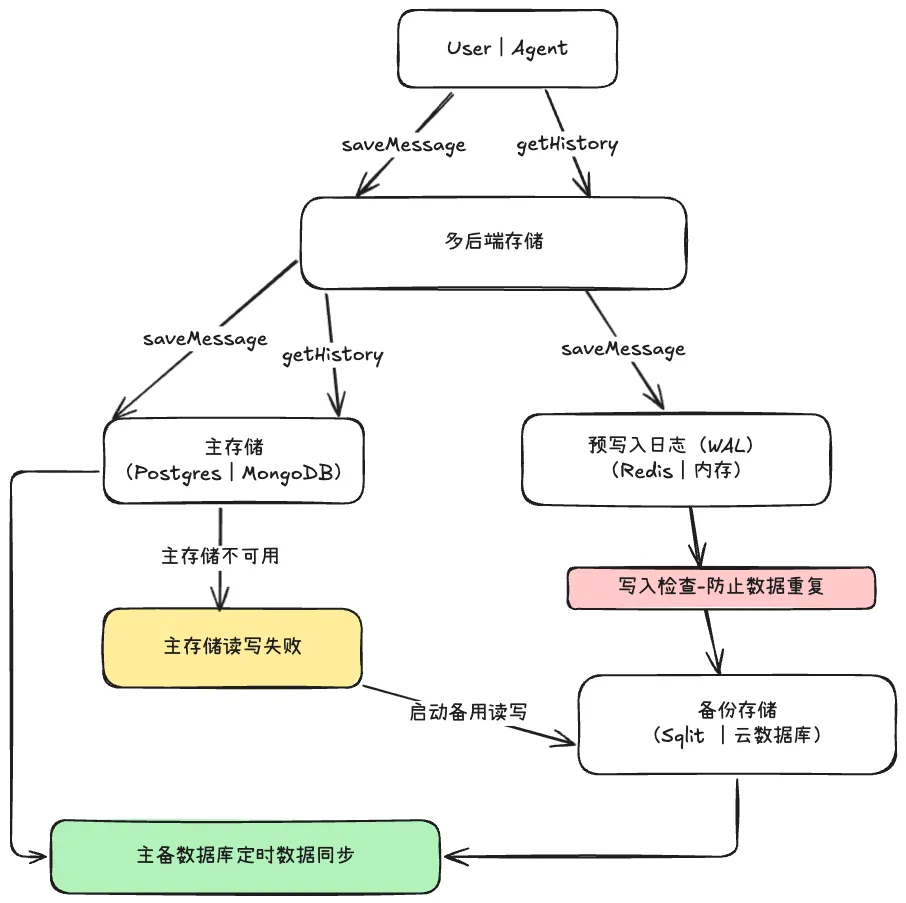

二、架构设计 ​

Excalidraw 文件：https://gcntfv628ebr.feishu.cn/file/BiIPb4jIZowZBFxMw7HctS3Inor

  1. 主存储（PrimaryDB）：快速的主数据库用于读写（例如：Redis、Postgres）
  2. 备份存储（BackupDB）：持久的次级数据库用于冗余（例如：Sqlit、云数据库）
  3. WAL：内存中或持久的日志，用于写入持久性和异步备份

三、工作原理 ​

1、saveMessage：保存消息

  • 主数据库可用
    • 写入主数据库
    • 写入 WAL（必须成功确保持久性）
    • WAL 会定期异步刷新道备份数据库
  • 主数据库不可用
    • 写入之前进行查询-防止重复写入
    • 备用数据库中没有该数据，写入备用数据库
    • 写入 WAL
    • WAL 写入之前进行查询-防止重复写入
    • 备用数据库中没有该数据，写入备用数据库

2、getHistory：获取历史记录

  • 从主数据库读取
  • 如果主数据库失败，则从备用数据库读取

3、clearHistory：清除历史记录：

清除所有三个：主数据库、备用数据库和 WAL

4、WAL 刷新工程线程：

按间隔运行（默认 5 秒），将处理的 WAL 条目刷新道备份数据库中

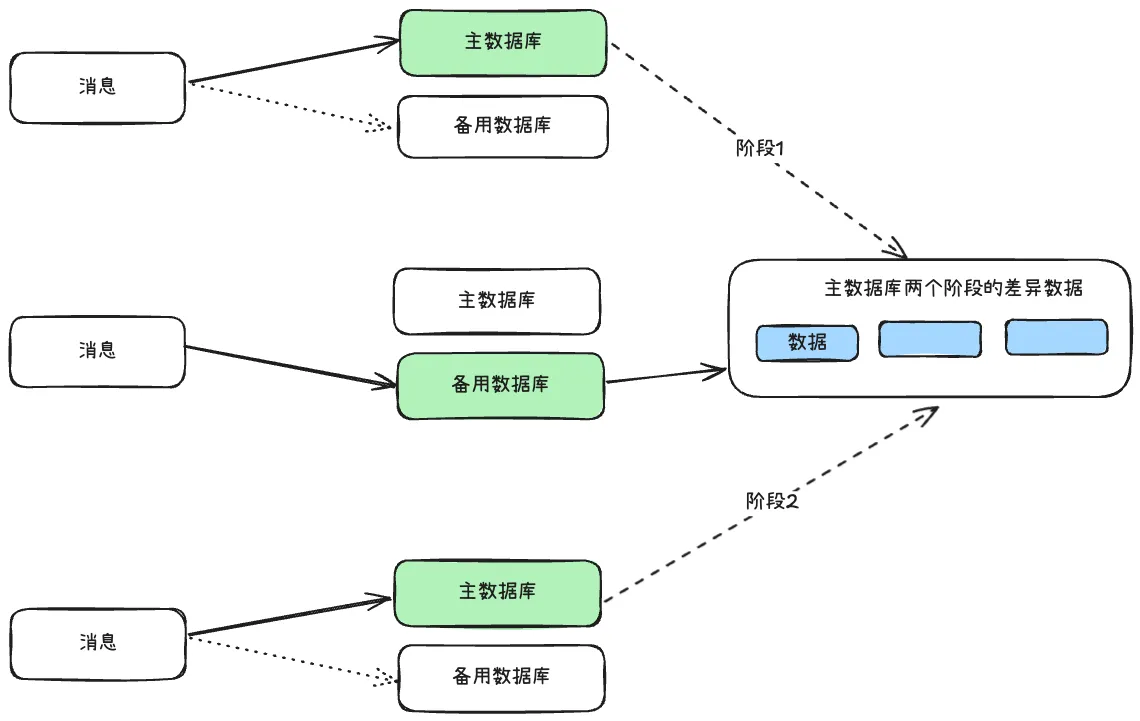

四、主备数据库同步 ​

Excalidraw 文件：https://gcntfv628ebr.feishu.cn/file/SezSb5k2boNwFSxVJQzc9msknhe

当主数据库出现断连，处于不可用的状态，那么这个时候备用数据库会成为“主力数据库”，数据的存储和查询都会进入到备用数据库中

因为之前的 WAL 的存在，备用数据库的数据一直是和主数据库中的数据是差不多的，所以不会受到很大的影响，这个时候服务是处于可用状态的

后续主数据库恢复，“主力数据库”又重新变为主数据库，但该数据库是丢失了一部分数据的，时间段就是（失效-恢复）这段时间

所以该同步脚本就是负责定时检查两个数据库的数据是否相同，要是不相同就进行增加补充

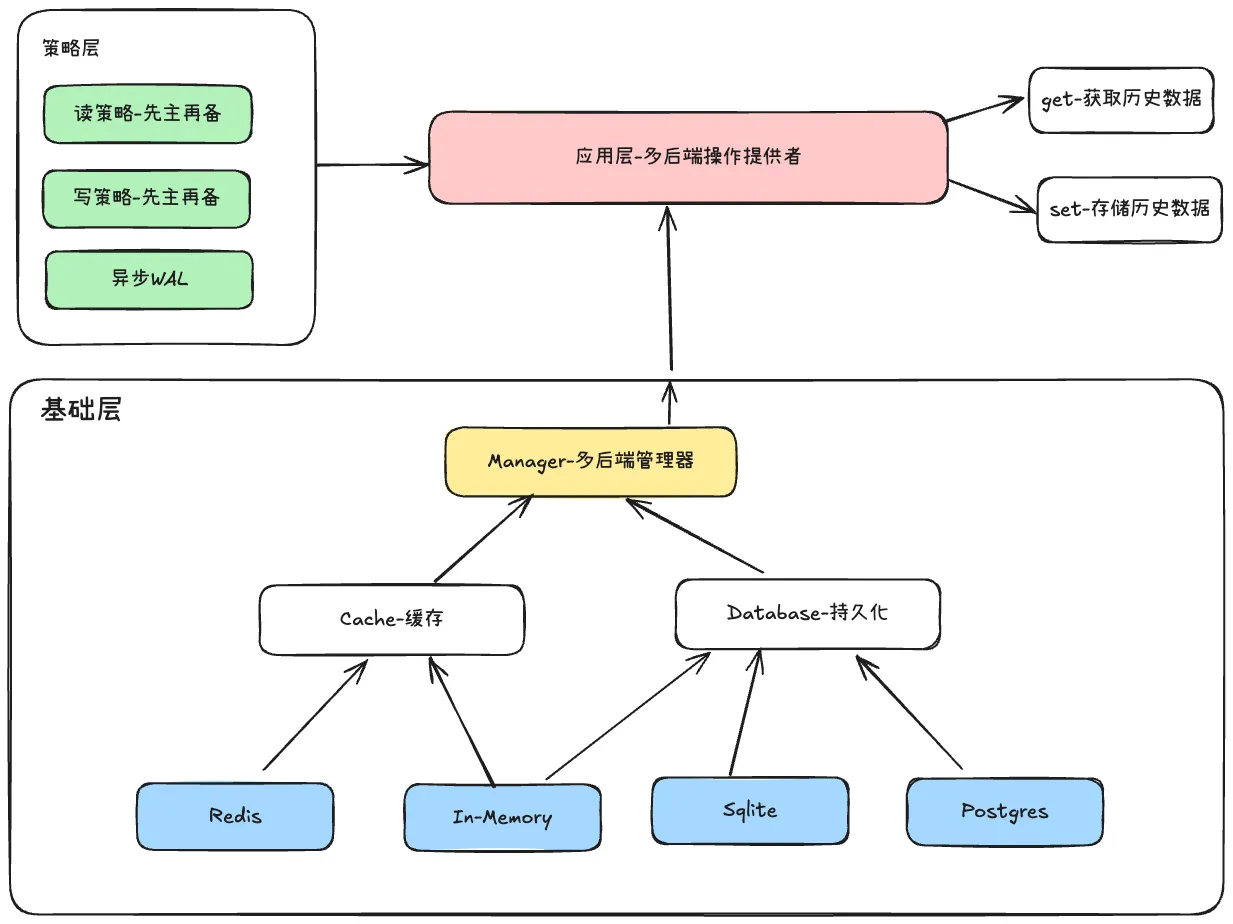

五、代码层实现细节 ​

Excalidraw 文件：https://gcntfv628ebr.feishu.cn/file/SezSb5k2boNwFSxVJQzc9msknhe

  1. 基础层：用于构建和管理多种不同的数据，并且给这些数据库定位分类，缓存和持久化，最后右 Manager 统一管理，对外进行实例化
  2. 策略层：查询不是简单的调用基础层中的查询方法，而是会进行策略查询，写入也是如此，会有 WAL 的异步写入，所以构建一个策略层供应用层调用
  3. 应用层：就是真正使用的地方，暴露构建参数进行实例化，同时提供读和写的方法

5.1、基础层的代码设计 ​

缓存-Cache 设计

typescript
/**
 * Cache Backend Interface
 *
 * Defines the contract for cache storage implementations.
 * Cache backends are optimized for fast, ephemeral storage with optional TTL support.
 *
 * Implementations can include:
 * - Redis: Distributed caching with network access
 * - In-Memory: Fast local caching with no persistence
 * - Memcached: Distributed memory caching system
 *
 * @module storage/backend/cache-backend
 */

/**
 * CacheBackend Interface
 *
 * Provides a unified API for different cache storage implementations.
 * All methods are asynchronous to support both local and network-based backends.
 *
 * @example
 * ```typescript
 * class RedisBackend implements CacheBackend {
 *   async get<T>(key: string): Promise<T | undefined> {
 *     const value = await this.redis.get(key);
 *     return value ? JSON.parse(value) : undefined;
 *   }
 *   // ... other methods
 * }
 * ```
 */
export interface CacheBackend {
	// Basic operations

	/**
	 * Retrieves a value from the cache by key
	 *
	 * @template T - The type of the cached value
	 * @param key - The cache key to retrieve
	 * @returns The cached value if found, undefined otherwise
	 *
	 * @example
	 * ```typescript
	 * const user = await cache.get<User>('user:123');
	 * if (!user) {
	 *   // Cache miss - fetch from database
	 * }
	 * ```
	 */
	get<T>(key: string): Promise<T | undefined>;

	/**
	 * Stores a value in the cache with optional TTL
	 *
	 * @template T - The type of the value to cache
	 * @param key - The cache key
	 * @param value - The value to cache (will be serialized)
	 * @param ttlSeconds - Optional time-to-live in seconds
	 *
	 * @example
	 * ```typescript
	 * // Cache for 1 hour
	 * await cache.set('user:123', userData, 3600);
	 *
	 * // Cache indefinitely
	 * await cache.set('config', configData);
	 * ```
	 */
	set<T>(key: string, value: T, ttlSeconds?: number): Promise<void>;

	/**
	 * Removes a value from the cache
	 *
	 * @param key - The cache key to delete
	 *
	 * @example
	 * ```typescript
	 * // Invalidate user cache after update
	 * await cache.delete('user:123');
	 * ```
	 */
	delete(key: string): Promise<void>;

	// Connection management

	/**
	 * Establishes connection to the cache backend
	 *
	 * Should be called before performing any operations.
	 * Implementations should handle reconnection logic internally.
	 *
	 * @throws {StorageConnectionError} If connection fails
	 *
	 * @example
	 * ```typescript
	 * const cache = new RedisBackend(config);
	 * await cache.connect();
	 * // Now ready to use
	 * ```
	 */
	connect(): Promise<void>;

	/**
	 * Gracefully closes the connection to the cache backend
	 *
	 * Should clean up resources and close any open connections.
	 * After disconnect, connect() must be called again before use.
	 *
	 * @example
	 * ```typescript
	 * // Clean shutdown
	 * await cache.disconnect();
	 * ```
	 */
	disconnect(): Promise<void>;

	/**
	 * Checks if the backend is currently connected and ready
	 *
	 * @returns true if connected and operational, false otherwise
	 *
	 * @example
	 * ```typescript
	 * if (!cache.isConnected()) {
	 *   await cache.connect();
	 * }
	 * ```
	 */
	isConnected(): boolean;

	/**
	 * Returns the backend type identifier
	 *
	 * Useful for logging, monitoring, and conditional logic based on backend type.
	 *
	 * @returns Backend type string (e.g., 'redis', 'memory', 'memcached')
	 *
	 * @example
	 * ```typescript
	 * console.log(`Using ${cache.getBackendType()} for caching`);
	 * ```
	 */
	getBackendType(): string;
}

Cache 缓存的设计方法

  1. get 方法：从缓存中获取指定的值
  2. set 方法：将值存储到缓存中
  3. delete 方法：从缓存中删除指定键的值
  4. disconnect 方法：优雅的关闭缓存的连接
  5. connect 方法：建立于缓存后端的连接
  6. isConnected 方法：检查缓存后端是否已连接并可用
  7. getBackendType 方法：返回后端类型标识符，用于日志记录，监控等

Database-持久化设计

typescript
/**
 * Database Backend Interface
 *
 * Defines the contract for persistent storage implementations.
 * Database backends are optimized for reliable, long-term data storage.
 *
 * Implementations can include:
 * - SQLite: Lightweight, file-based database
 * - PostgreSQL: Full-featured relational database
 * - In-Memory: For testing or temporary persistence
 *
 * @module storage/backend/database-backend
 */

/**
 * DatabaseBackend Interface
 *
 * Provides a unified API for different database storage implementations.
 * Extends basic key-value operations with list operations for collections.
 *
 * @example
 * ```typescript
 * class SqliteBackend implements DatabaseBackend {
 *   async get<T>(key: string): Promise<T | undefined> {
 *     const row = await this.db.get('SELECT value FROM store WHERE key = ?', key);
 *     return row ? JSON.parse(row.value) : undefined;
 *   }
 *   // ... other methods
 * }
 * ```
 */
export interface DatabaseBackend {
	// Basic key-value operations

	/**
	 * Retrieves a value from the database by key
	 *
	 * @template T - The type of the stored value
	 * @param key - The storage key to retrieve
	 * @returns The stored value if found, undefined otherwise
	 *
	 * @example
	 * ```typescript
	 * const settings = await db.get<AppSettings>('app:settings');
	 * ```
	 */
	get<T>(key: string): Promise<T | undefined>;

	/**
	 * Stores a value in the database
	 *
	 * Unlike cache, database storage is persistent and doesn't support TTL.
	 *
	 * @template T - The type of the value to store
	 * @param key - The storage key
	 * @param value - The value to store (will be serialized)
	 *
	 * @example
	 * ```typescript
	 * await db.set('user:123', userData);
	 * ```
	 */
	set<T>(key: string, value: T): Promise<void>;

	/**
	 * Removes a value from the database
	 *
	 * @param key - The storage key to delete
	 *
	 * @example
	 * ```typescript
	 * await db.delete('user:123');
	 * ```
	 */
	delete(key: string): Promise<void>;

	// Collection operations

	/**
	 * Lists all keys matching a prefix
	 *
	 * Useful for finding related data or implementing namespaces.
	 *
	 * @param prefix - The key prefix to search for
	 * @returns Array of keys matching the prefix
	 *
	 * @example
	 * ```typescript
	 * // Get all user keys
	 * const userKeys = await db.list('user:');
	 * // Returns: ['user:123', 'user:456', ...]
	 * ```
	 */
	list(prefix: string): Promise<string[]>;

	// List/Array operations

	/**
	 * Appends an item to a list stored at the given key
	 *
	 * Creates the list if it doesn't exist. Useful for logs, history, etc.
	 *
	 * @template T - The type of items in the list
	 * @param key - The storage key for the list
	 * @param item - The item to append
	 *
	 * @example
	 * ```typescript
	 * // Add to user's activity log
	 * await db.append('activity:user:123', {
	 *   action: 'login',
	 *   timestamp: Date.now()
	 * });
	 * ```
	 */
	append<T>(key: string, item: T): Promise<void>;

	/**
	 * Retrieves a range of items from a list
	 *
	 * Supports pagination through stored lists.
	 *
	 * @template T - The type of items in the list
	 * @param key - The storage key for the list
	 * @param start - Starting index (0-based)
	 * @param count - Number of items to retrieve
	 * @returns Array of items in the specified range
	 *
	 * @example
	 * ```typescript
	 * // Get latest 10 activities
	 * const activities = await db.getRange('activity:user:123', 0, 10);
	 * ```
	 */
	getRange<T>(key: string, start: number, count: number): Promise<T[]>;

	// Connection management

	/**
	 * Establishes connection to the database backend
	 *
	 * Should be called before performing any operations.
	 * May create database schema/tables if needed.
	 *
	 * @throws {StorageConnectionError} If connection fails
	 *
	 * @example
	 * ```typescript
	 * const db = new SqliteBackend(config);
	 * await db.connect();
	 * ```
	 */
	connect(): Promise<void>;

	/**
	 * Gracefully closes the database connection
	 *
	 * Should ensure all pending writes are completed before closing.
	 *
	 * @example
	 * ```typescript
	 * await db.disconnect();
	 * ```
	 */
	disconnect(): Promise<void>;

	/**
	 * Checks if the backend is currently connected
	 *
	 * @returns true if connected and operational, false otherwise
	 */
	isConnected(): boolean;

	/**
	 * Returns the backend type identifier
	 *
	 * @returns Backend type string (e.g., 'sqlite', 'postgresql', 'memory')
	 */
	getBackendType(): string;
}

Database 持久化的方法

  1. get 方法：从缓存中获取指定的值
  2. set 方法：将值存储到缓存中
  3. delete 方法：从缓存中删除指定键的值
  4. list 方法：列出所有匹配指定前缀的键，使用场景用于命名空间
  5. append 方法：向存储的列表追加元素，支持列表数据结构，用于消息队列的实现，历史记录的维护
  6. getRange 方法：获取列表中指定范围的元素
  7. disconnect 方法：优雅的关闭缓存的连接
  8. connect 方法：建立于缓存后端的连接
  9. isConnected 方法：检查缓存后端是否已连接并可用
  10. getBackendType 方法：返回后端类型标识符，用于日志记录，监控等

postgresql 的代码示例

typescript
/**
 * PostgreSQL Database Backend Implementation
 *
 * High-performance PostgreSQL backend for persistent, reliable storage.
 * Supports connection pooling, prepared statements, and comprehensive error handling.
 *
 * Features:
 * - Connection pooling with configurable settings
 * - Prepared statements for SQL injection protection
 * - Schema creation and management
 * - Comprehensive error handling
 * - Performance monitoring and logging
 * - Support for both connection URLs and individual parameters
 *
 * @module storage/backend/postgresql
 */

import { Pool, type PoolConfig } from 'pg';
import type { DatabaseBackend } from './database-backend.js';
import type { PostgresBackendConfig } from '../config.js';
import { StorageError, StorageConnectionError } from './types.js';
import { createLogger, type Logger } from '../../logger/index.js';

/**
 * PostgreSQL Database Backend
 *
 * Implements the DatabaseBackend interface using PostgreSQL as the underlying storage.
 * Provides ACID compliance, strong consistency, and enterprise-grade reliability.
 *
 * Key Features:
 * - Connection pooling for high concurrency
 * - Prepared statements for performance and security
 * - Automatic schema creation and management
 * - Full CRUD operations with atomic transactions
 * - Comprehensive error handling and logging
 *
 * @example
 * ```typescript
 * const backend = new PostgresBackend({
 *   type: 'postgres',
 *   host: 'localhost',
 *   port: 5432,
 *   database: 'myapp',
 *   user: 'postgres',
 *   password: 'secret'
 * });
 *
 * await backend.connect();
 * await backend.set('user:123', userData);
 * const user = await backend.get('user:123');
 * await backend.disconnect();
 * ```
 */
export class PostgresBackend implements DatabaseBackend {
	private pool: Pool | undefined;
	private connected = false;
	private readonly config: PostgresBackendConfig;
	private readonly logger: Logger;

	// Prepared statement cache
	private statements: Map<string, string> = new Map();

	constructor(config: PostgresBackendConfig) {
		this.config = config;
		this.logger = createLogger();
		this.initializeStatements();
	}

	/**
	 * Initialize prepared statement definitions
	 */
	private initializeStatements(): void {
		this.statements.set('get', 'SELECT value FROM cipher_store WHERE key = $1');
		this.statements.set(
			'set',
			`
			INSERT INTO cipher_store (key, value, created_at, updated_at)
			VALUES ($1, $2, $3, $4)
			ON CONFLICT (key) DO UPDATE SET
				value = EXCLUDED.value,
				updated_at = EXCLUDED.updated_at
		`
		);
		this.statements.set('delete', 'DELETE FROM cipher_store WHERE key = $1');
		this.statements.set('list', 'SELECT key FROM cipher_store WHERE key LIKE $1 ORDER BY key');
		this.statements.set(
			'listAppend',
			`
			INSERT INTO cipher_lists (key, value, position, created_at)
			VALUES ($1, $2, COALESCE((SELECT MAX(position) + 1 FROM cipher_lists WHERE key = $1), 0), $3)
		`
		);
		this.statements.set(
			'getRange',
			`
			SELECT value FROM cipher_lists
			WHERE key = $1
			ORDER BY position
			LIMIT $2 OFFSET $3
		`
		);
		this.statements.set('deleteList', 'DELETE FROM cipher_lists WHERE key = $1');
		this.statements.set(
			'updateListMetadata',
			`
			INSERT INTO cipher_list_metadata (key, count, created_at, updated_at)
			VALUES ($1, (SELECT COUNT(*) FROM cipher_lists WHERE key = $1), $2, $3)
			ON CONFLICT (key) DO UPDATE SET
				count = (SELECT COUNT(*) FROM cipher_lists WHERE key = $1),
				updated_at = EXCLUDED.updated_at
		`
		);
	}

	/**
	 * Connect to PostgreSQL database
	 */
	async connect(): Promise<void> {
		if (this.connected) {
			this.logger.debug('PostgreSQL backend already connected');
			return;
		}

		try {
			this.logger.info('Connecting to PostgreSQL database');

			// Build connection configuration
			const poolConfig = this.buildPoolConfig();

			// Create connection pool
			this.pool = new Pool(poolConfig);

			// Test connection
			const client = await this.pool.connect();
			try {
				await client.query('SELECT 1');
				this.logger.debug('PostgreSQL connection test successful');
			} finally {
				client.release();
			}

			// Create tables if they don't exist
			await this.createTables();

			this.connected = true;
			this.logger.info('PostgreSQL backend connected successfully', {
				host: this.config.host || 'localhost',
				database: this.config.database,
				pool: {
					max: poolConfig.max,
					min: poolConfig.min,
				},
			});
		} catch (error) {
			this.logger.error('Failed to connect to PostgreSQL database', {
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageConnectionError(
				'Failed to connect to PostgreSQL database',
				'postgres',
				error as Error
			);
		}
	}

	/**
	 * Disconnect from PostgreSQL database
	 */
	async disconnect(): Promise<void> {
		if (!this.connected || !this.pool) {
			return;
		}

		try {
			await this.pool.end();
			this.connected = false;
			this.pool = undefined;
			this.logger.info('PostgreSQL backend disconnected');
		} catch (error) {
			this.logger.error('Error disconnecting from PostgreSQL', {
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to disconnect from PostgreSQL', 'disconnect', error as Error);
		}
	}

	/**
	 * Check if backend is connected
	 */
	isConnected(): boolean {
		return this.connected && this.pool !== undefined;
	}

	/**
	 * Get backend type identifier
	 */
	getBackendType(): string {
		return 'postgres';
	}

	/**
	 * Get value by key
	 */
	async get<T>(key: string): Promise<T | undefined> {
		this.checkConnection();

		try {
			const result = await this.pool!.query(this.statements.get('get')!, [key]);

			if (result.rows.length === 0) {
				return undefined;
			}

			const serialized = result.rows[0].value;
			return JSON.parse(serialized) as T;
		} catch (error) {
			this.logger.error('Error getting value from PostgreSQL', {
				key,
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to get value from PostgreSQL', 'get', error as Error);
		}
	}

	/**
	 * Set key-value pair
	 */
	async set<T>(key: string, value: T): Promise<void> {
		this.checkConnection();

		try {
			const serialized = JSON.stringify(value);
			const now = new Date();
			await this.pool!.query(this.statements.get('set')!, [key, serialized, now, now]);
		} catch (error) {
			this.logger.error('Error setting value in PostgreSQL', {
				key,
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to set value in PostgreSQL', 'set', error as Error);
		}
	}

	/**
	 * Delete key
	 */
	async delete(key: string): Promise<void> {
		this.checkConnection();

		try {
			// Use transaction to delete from both key-value store and lists
			const client = await this.pool!.connect();
			try {
				await client.query('BEGIN');
				await client.query(this.statements.get('delete')!, [key]);
				await client.query(this.statements.get('deleteList')!, [key]);
				await client.query('COMMIT');
			} catch (error) {
				await client.query('ROLLBACK');
				throw error;
			} finally {
				client.release();
			}
		} catch (error) {
			this.logger.error('Error deleting value from PostgreSQL', {
				key,
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to delete value from PostgreSQL', 'delete', error as Error);
		}
	}

	/**
	 * List keys by prefix
	 */
	async list(prefix: string): Promise<string[]> {
		this.checkConnection();

		try {
			const result = await this.pool!.query(this.statements.get('list')!, [prefix + '%']);
			return result.rows.map(row => row.key);
		} catch (error) {
			this.logger.error('Error listing keys from PostgreSQL', {
				prefix,
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to list keys from PostgreSQL', 'list', error as Error);
		}
	}

	/**
	 * Append item to list
	 */
	async append<T>(key: string, item: T): Promise<void> {
		this.checkConnection();

		try {
			const client = await this.pool!.connect();
			try {
				await client.query('BEGIN');

				const serialized = JSON.stringify(item);
				const now = new Date();

				await client.query(this.statements.get('listAppend')!, [key, serialized, now]);
				await client.query(this.statements.get('updateListMetadata')!, [key, now, now]);

				await client.query('COMMIT');
			} catch (error) {
				await client.query('ROLLBACK');
				throw error;
			} finally {
				client.release();
			}
		} catch (error) {
			this.logger.error('Error appending to list in PostgreSQL', {
				key,
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to append to list in PostgreSQL', 'append', error as Error);
		}
	}

	/**
	 * Get range of items from list
	 */
	async getRange<T>(key: string, start: number, count: number): Promise<T[]> {
		this.checkConnection();

		try {
			const result = await this.pool!.query(this.statements.get('getRange')!, [key, count, start]);
			return result.rows.map(row => JSON.parse(row.value) as T);
		} catch (error) {
			this.logger.error('Error getting range from PostgreSQL', {
				key,
				start,
				count,
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('Failed to get range from PostgreSQL', 'getRange', error as Error);
		}
	}

	/**
	 * Get database information
	 */
	getInfo(): Record<string, any> {
		const baseInfo = {
			type: 'postgres',
			connected: this.connected,
		};

		if (!this.connected || !this.pool) {
			return baseInfo;
		}

		return {
			...baseInfo,
			pool: {
				totalCount: this.pool.totalCount,
				idleCount: this.pool.idleCount,
				waitingCount: this.pool.waitingCount,
			},
			config: {
				host: this.config.host || 'localhost',
				port: this.config.port || 5432,
				database: this.config.database,
				ssl: this.config.ssl || false,
			},
		};
	}

	/**
	 * Perform database maintenance
	 */
	async maintenance(): Promise<void> {
		this.checkConnection();

		try {
			this.logger.info('Running PostgreSQL maintenance');

			// Analyze tables for query optimization
			await this.pool!.query('ANALYZE cipher_store');
			await this.pool!.query('ANALYZE cipher_lists');
			await this.pool!.query('ANALYZE cipher_list_metadata');

			this.logger.info('PostgreSQL maintenance completed successfully');
		} catch (error) {
			this.logger.error('Error during PostgreSQL maintenance', {
				error: error instanceof Error ? error.message : String(error),
			});
			throw new StorageError('PostgreSQL maintenance failed', 'maintenance', error as Error);
		}
	}

	// Private helper methods

	/**
	 * Build connection pool configuration
	 */
	private buildPoolConfig(): PoolConfig {
		// If URL is provided, use it
		if (this.config.url) {
			return {
				connectionString: this.config.url,
				max: this.config.pool?.max || this.config.maxConnections || 10,
				min: this.config.pool?.min || 2,
				idleTimeoutMillis:
					this.config.pool?.idleTimeoutMillis || this.config.idleTimeoutMillis || 30000,
				connectionTimeoutMillis:
					this.config.pool?.acquireTimeoutMillis || this.config.connectionTimeoutMillis || 10000,
				ssl: this.config.ssl,
			};
		}

		// Build from individual parameters
		return {
			host: this.config.host || 'localhost',
			port: this.config.port || 5432,
			database: this.config.database,
			user: this.config.user,
			password: this.config.password,
			max: this.config.pool?.max || this.config.maxConnections || 10,
			min: this.config.pool?.min || 2,
			idleTimeoutMillis:
				this.config.pool?.idleTimeoutMillis || this.config.idleTimeoutMillis || 30000,
			connectionTimeoutMillis:
				this.config.pool?.acquireTimeoutMillis || this.config.connectionTimeoutMillis || 10000,
			ssl: this.config.ssl,
		};
	}

	/**
	 * Create database tables
	 */
	private async createTables(): Promise<void> {
		if (!this.pool) {
			throw new StorageError('Database not connected', 'createTables');
		}

		// Key-value store table
		await this.pool.query(`
			CREATE TABLE IF NOT EXISTS cipher_store (
				key TEXT PRIMARY KEY,
				value TEXT NOT NULL,
				created_at TIMESTAMP WITH TIME ZONE NOT NULL,
				updated_at TIMESTAMP WITH TIME ZONE NOT NULL
			)
		`);

		// Lists table for list operations
		await this.pool.query(`
			CREATE TABLE IF NOT EXISTS cipher_lists (
				key TEXT NOT NULL,
				value TEXT NOT NULL,
				position INTEGER NOT NULL,
				created_at TIMESTAMP WITH TIME ZONE NOT NULL,
				PRIMARY KEY (key, position)
			)
		`);

		// List metadata table
		await this.pool.query(`
			CREATE TABLE IF NOT EXISTS cipher_list_metadata (
				key TEXT PRIMARY KEY,
				count INTEGER NOT NULL DEFAULT 0,
				created_at TIMESTAMP WITH TIME ZONE NOT NULL,
				updated_at TIMESTAMP WITH TIME ZONE NOT NULL
			)
		`);

		// Create indexes for performance
		await this.pool.query(
			'CREATE INDEX IF NOT EXISTS idx_cipher_store_updated_at ON cipher_store(updated_at)'
		);
		await this.pool.query('CREATE INDEX IF NOT EXISTS idx_cipher_lists_key ON cipher_lists(key)');
		await this.pool.query(
			'CREATE INDEX IF NOT EXISTS idx_cipher_lists_created_at ON cipher_lists(created_at)'
		);

		this.logger.debug('PostgreSQL tables and indexes created');
	}

	/**
	 * Check if backend is connected
	 */
	private checkConnection(): void {
		if (!this.connected || !this.pool) {
			throw new StorageError('PostgreSQL backend not connected', 'checkConnection');
		}
	}
}

5.2、管理层的设计 ​

其是存储系统的核心编排器，负责管理双后端存储架构

typescript
/**
 * Storage Manager Implementation
 *
 * Orchestrates the dual-backend storage system with cache and database backends.
 * Provides lazy loading, graceful fallbacks, and connection management.
 *
 * @module storage/manager
 */

import type { CacheBackend, DatabaseBackend, StorageBackends, StorageConfig } from './types.js';
import { StorageSchema } from './config.js';
import { Logger, createLogger } from '../logger/index.js';
import {
	LOG_PREFIXES,
	ERROR_MESSAGES,
	TIMEOUTS,
	HEALTH_CHECK,
	BACKEND_TYPES,
} from './constants.js';

/**
 * Health check result for storage backends
 */
export interface HealthCheckResult {
	cache: boolean;
	database: boolean;
	overall: boolean;
	details?: {
		cache?: { status: string; latency?: number; error?: string };
		database?: { status: string; latency?: number; error?: string };
	};
}

/**
 * Storage system information
 */
export interface StorageInfo {
	connected: boolean;
	backends: {
		cache: {
			type: string;
			connected: boolean;
			fallback: boolean;
		};
		database: {
			type: string;
			connected: boolean;
			fallback: boolean;
		};
	};
	connectionAttempts: number;
	lastError: string | undefined;
}

/**
 * Storage Manager
 *
 * Manages the lifecycle of storage backends with lazy loading and fallback support.
 * Follows the factory pattern with graceful degradation to in-memory storage.
 *
 * @example
 * ```typescript
 * const manager = new StorageManager(config);
 * const { cache, database } = await manager.connect();
 *
 * // Use backends
 * await cache.set('key', value, 300);
 * await database.set('user:123', userData);
 *
 * // Cleanup
 * await manager.disconnect();
 * ```
 */
export class StorageManager {
	// Core state
	private cache: CacheBackend | undefined;
	private database: DatabaseBackend | undefined;
	private connected = false;
	private readonly config: StorageConfig;
	private readonly logger: Logger;

	// Connection tracking
	private connectionAttempts = 0;
	private lastConnectionError?: Error;

	// Backend metadata
	private cacheMetadata = {
		type: 'unknown',
		isFallback: false,
		connectionTime: 0,
	};

	private databaseMetadata = {
		type: 'unknown',
		isFallback: false,
		connectionTime: 0,
	};

	// Lazy loading module references (static to share across instances)
	private static redisModule?: any;
	private static sqliteModule?: any;
	private static postgresModule?: any;

	// Health check configuration
	private readonly healthCheckKey = HEALTH_CHECK.KEY;
	private readonly healthCheckTimeout = TIMEOUTS.HEALTH_CHECK;

	/**
	 * Creates a new StorageManager instance
	 *
	 * @param config - Storage configuration with cache and database backend configs
	 * @throws {Error} If configuration is invalid
	 */
	constructor(config: StorageConfig) {
		// Validate configuration using Zod schema
		const validationResult = StorageSchema.safeParse(config);
		if (!validationResult.success) {
			throw new Error(
				`${ERROR_MESSAGES.INVALID_CONFIG}: ${validationResult.error.errors
					.map(e => `${e.path.join('.')}: ${e.message}`)
					.join(', ')}`
			);
		}

		this.config = validationResult.data;
		this.logger = createLogger({
			level: process.env.LOG_LEVEL || 'info',
		});

		this.logger.info(`${LOG_PREFIXES.MANAGER} Initialized with configuration`, {
			cacheType: this.config.cache.type,
			databaseType: this.config.database.type,
		});
	}

	/**
	 * Get the current storage configuration
	 *
	 * @returns The storage configuration
	 */
	public getConfig(): Readonly<StorageConfig> {
		return this.config;
	}

	/**
	 * Get information about the storage system
	 *
	 * @returns Storage system information including connection status and backend types
	 */
	public getInfo(): StorageInfo {
		return {
			connected: this.connected,
			backends: {
				cache: {
					type: this.cacheMetadata.type,
					connected: this.cache?.isConnected() ?? false,
					fallback: this.cacheMetadata.isFallback,
				},
				database: {
					type: this.databaseMetadata.type,
					connected: this.database?.isConnected() ?? false,
					fallback: this.databaseMetadata.isFallback,
				},
			},
			connectionAttempts: this.connectionAttempts,
			lastError: this.lastConnectionError?.message,
		};
	}

	/**
	 * Get the current storage backends if connected
	 *
	 * @returns The storage backends or null if not connected
	 */
	public getBackends(): StorageBackends | null {
		if (!this.connected || !this.cache || !this.database) {
			return null;
		}

		return {
			cache: this.cache,
			database: this.database,
		};
	}

	/**
	 * Check if the storage manager is connected
	 *
	 * @returns true if both backends are connected
	 */
	public isConnected(): boolean {
		return (
			this.connected && this.cache?.isConnected() === true && this.database?.isConnected() === true
		);
	}

	// Placeholder methods for next phases

	/**
	 * Connect to storage backends
	 *
	 * @returns The connected storage backends
	 * @throws {StorageConnectionError} If strict backends fail to connect
	 */
	public async connect(): Promise<StorageBackends> {
		// Check if already connected
		if (this.connected) {
			this.logger.debug(`${LOG_PREFIXES.MANAGER} Already connected`, {
				cacheType: this.cacheMetadata.type,
				databaseType: this.databaseMetadata.type,
			});

			return {
				cache: this.cache!,
				database: this.database!,
			};
		}

		this.connectionAttempts++;
		this.logger.info(
			`${LOG_PREFIXES.MANAGER} Starting connection attempt ${this.connectionAttempts}`
		);

		try {
			// Create and connect cache backend
			const cacheStartTime = Date.now();
			try {
				this.cache = await this.createCacheBackend();
				await this.cache.connect();
				this.cacheMetadata.connectionTime = Date.now() - cacheStartTime;

				this.logger.info(`${LOG_PREFIXES.CACHE} Connected successfully`, {
					type: this.cacheMetadata.type,
					isFallback: this.cacheMetadata.isFallback,
					connectionTime: `${this.cacheMetadata.connectionTime}ms`,
				});
			} catch (cacheError) {
				// If the configured backend fails, try fallback to in-memory
				this.logger.warn(`${LOG_PREFIXES.CACHE} Connection failed, attempting fallback`, {
					error: cacheError instanceof Error ? cacheError.message : String(cacheError),
					originalType: this.config.cache.type,
				});

				if (this.config.cache.type !== BACKEND_TYPES.IN_MEMORY) {
					const { InMemoryBackend } = await import('./backend/in-memory.js');
					this.cache = new InMemoryBackend();
					await this.cache.connect();
					this.cacheMetadata.type = BACKEND_TYPES.IN_MEMORY;
					this.cacheMetadata.isFallback = true;
					this.cacheMetadata.connectionTime = Date.now() - cacheStartTime;

					this.logger.info(`${LOG_PREFIXES.CACHE} Connected to fallback backend`, {
						type: this.cacheMetadata.type,
						originalType: this.config.cache.type,
					});
				} else {
					throw cacheError; // Re-throw if already using in-memory
				}
			}

			// Create and connect database backend
			const dbStartTime = Date.now();
			try {
				this.database = await this.createDatabaseBackend();
				await this.database.connect();
				this.databaseMetadata.connectionTime = Date.now() - dbStartTime;

				this.logger.info(`${LOG_PREFIXES.DATABASE} Connected successfully`, {
					type: this.databaseMetadata.type,
					isFallback: this.databaseMetadata.isFallback,
					connectionTime: `${this.databaseMetadata.connectionTime}ms`,
				});
			} catch (err) {
				this.logger.error('Failed to connect to SQLite database', err);
				// If the configured backend fails, try fallback to in-memory
				this.logger.warn(`${LOG_PREFIXES.DATABASE} Connection failed, attempting fallback`, {
					error: err instanceof Error ? err.message : String(err),
					originalType: this.config.database.type,
				});

				if (this.config.database.type !== BACKEND_TYPES.IN_MEMORY) {
					const { InMemoryBackend } = await import('./backend/in-memory.js');
					this.database = new InMemoryBackend();
					await this.database.connect();
					this.databaseMetadata.type = BACKEND_TYPES.IN_MEMORY;
					this.databaseMetadata.isFallback = true;
					this.databaseMetadata.connectionTime = Date.now() - dbStartTime;

					this.logger.info(`${LOG_PREFIXES.DATABASE} Connected to fallback backend`, {
						type: this.databaseMetadata.type,
						originalType: this.config.database.type,
					});
				} else {
					throw err; // Re-throw if already using in-memory
				}
			}

			this.connected = true;

			this.logger.info(`${LOG_PREFIXES.MANAGER} Storage system connected`, {
				cacheBackend: this.cacheMetadata.type,
				databaseBackend: this.databaseMetadata.type,
				totalConnectionTime: `${this.cacheMetadata.connectionTime + this.databaseMetadata.connectionTime}ms`,
			});

			return {
				cache: this.cache!,
				database: this.database!,
			};
		} catch (error) {
			// Store error for reporting
			this.lastConnectionError = error as Error;

			// Disconnect any successfully connected backends
			if (this.cache?.isConnected()) {
				await this.cache.disconnect().catch(err =>
					this.logger.error(`${LOG_PREFIXES.CACHE} Error during cleanup disconnect`, {
						error: err,
					})
				);
			}

			if (this.database?.isConnected()) {
				await this.database.disconnect().catch(err =>
					this.logger.error(`${LOG_PREFIXES.DATABASE} Error during cleanup disconnect`, {
						error: err,
					})
				);
			}

			// Reset state
			this.cache = undefined;
			this.database = undefined;
			this.connected = false;

			throw error;
		}
	}

	/**
	 * Disconnect from all storage backends
	 */
	public async disconnect(): Promise<void> {
		if (!this.connected) {
			this.logger.debug(`${LOG_PREFIXES.MANAGER} Already disconnected`);
			return;
		}

		this.logger.info(`${LOG_PREFIXES.MANAGER} Disconnecting storage backends`);

		const disconnectPromises: Promise<void>[] = [];

		// Disconnect cache backend
		if (this.cache?.isConnected()) {
			disconnectPromises.push(
				this.cache
					.disconnect()
					.then(() => {
						this.logger.info(`${LOG_PREFIXES.CACHE} Disconnected successfully`);
					})
					.catch(error => {
						this.logger.error(`${LOG_PREFIXES.CACHE} Disconnect error`, { error });
						throw error;
					})
			);
		}

		// Disconnect database backend
		if (this.database?.isConnected()) {
			disconnectPromises.push(
				this.database
					.disconnect()
					.then(() => {
						this.logger.info(`${LOG_PREFIXES.DATABASE} Disconnected successfully`);
					})
					.catch(error => {
						this.logger.error(`${LOG_PREFIXES.DATABASE} Disconnect error`, { error });
						throw error;
					})
			);
		}

		// Wait for all disconnects with timeout
		try {
			await Promise.race([
				Promise.all(disconnectPromises),
				new Promise((_, reject) =>
					setTimeout(() => reject(new Error('Disconnect timeout')), TIMEOUTS.SHUTDOWN)
				),
			]);
		} finally {
			// Always clean up state
			this.cache = undefined;
			this.database = undefined;
			this.connected = false;

			// Reset metadata
			this.cacheMetadata = {
				type: 'unknown',
				isFallback: false,
				connectionTime: 0,
			};

			this.databaseMetadata = {
				type: 'unknown',
				isFallback: false,
				connectionTime: 0,
			};

			this.logger.info(`${LOG_PREFIXES.MANAGER} Storage system disconnected`);
		}
	}

	/**
	 * Perform health check on all backends
	 *
	 * @returns Health check results for each backend
	 */
	public async healthCheck(): Promise<HealthCheckResult> {
		// Implementation in Phase 5
		throw new Error('Not implemented yet - Phase 5');
	}

	// Private helper methods

	/**
	 * Create cache backend based on configuration
	 */
	private async createCacheBackend(): Promise<CacheBackend> {
		const config = this.config.cache;

		this.logger.debug(`${LOG_PREFIXES.CACHE} Creating backend`, { type: config.type });

		switch (config.type) {
			case BACKEND_TYPES.REDIS: {
				try {
					// Lazy load Redis module
					if (!StorageManager.redisModule) {
						this.logger.debug(`${LOG_PREFIXES.CACHE} Lazy loading Redis module`);
						const { RedisBackend } = await import('./backend/redis-backend.js');
						StorageManager.redisModule = RedisBackend;
					}

					const RedisBackend = StorageManager.redisModule;
					this.cacheMetadata.type = BACKEND_TYPES.REDIS;
					this.cacheMetadata.isFallback = false;

					return new RedisBackend(config);
				} catch (error) {
					this.logger.debug(`${LOG_PREFIXES.CACHE} Failed to create Redis backend`, {
						error: error instanceof Error ? error.message : String(error),
					});
					throw error; // Let connection handler deal with fallback
				}
			}

			case BACKEND_TYPES.IN_MEMORY:
			default: {
				// Use in-memory backend
				const { InMemoryBackend } = await import('./backend/in-memory.js');
				this.cacheMetadata.type = BACKEND_TYPES.IN_MEMORY;
				this.cacheMetadata.isFallback = false;

				return new InMemoryBackend();
			}
		}
	}

	/**
	 * Create database backend based on configuration
	 */
	private async createDatabaseBackend(): Promise<DatabaseBackend> {
		const config = this.config.database;

		this.logger.debug(`${LOG_PREFIXES.DATABASE} Creating backend`, { type: config.type });

		switch (config.type) {
			case BACKEND_TYPES.SQLITE: {
				try {
					// Lazy load SQLite module
					if (!StorageManager.sqliteModule) {
						this.logger.debug(`${LOG_PREFIXES.DATABASE} Lazy loading SQLite module`);
						const { SqliteBackend } = await import('./backend/sqlite.js');
						StorageManager.sqliteModule = SqliteBackend;
					}

					const SqliteBackend = StorageManager.sqliteModule;
					this.databaseMetadata.type = BACKEND_TYPES.SQLITE;
					this.databaseMetadata.isFallback = false;

					return new SqliteBackend(config);
				} catch (error) {
					this.logger.debug(`${LOG_PREFIXES.DATABASE} Failed to create SQLite backend`, {
						error: error instanceof Error ? error.message : String(error),
					});
					throw error; // Let connection handler deal with fallback
				}
			}

			case BACKEND_TYPES.POSTGRES: {
				try {
					// Lazy load PostgreSQL module
					if (!StorageManager.postgresModule) {
						this.logger.debug(`${LOG_PREFIXES.DATABASE} Lazy loading PostgreSQL module`);
						const { PostgresBackend } = await import('./backend/postgresql.js');
						StorageManager.postgresModule = PostgresBackend;
					}

					const PostgresBackend = StorageManager.postgresModule;
					this.databaseMetadata.type = BACKEND_TYPES.POSTGRES;
					this.databaseMetadata.isFallback = false;

					return new PostgresBackend(config);
				} catch (error) {
					this.logger.debug(`${LOG_PREFIXES.DATABASE} Failed to create PostgreSQL backend`, {
						error: error instanceof Error ? error.message : String(error),
					});
					throw error; // Let connection handler deal with fallback
				}
			}

			case BACKEND_TYPES.IN_MEMORY:
			default: {
				// Use in-memory backend
				const { InMemoryBackend } = await import('./backend/in-memory.js');
				this.databaseMetadata.type = BACKEND_TYPES.IN_MEMORY;
				this.databaseMetadata.isFallback = false;

				return new InMemoryBackend();
			}
		}
	}
}

管理层的方法设计

  1. connect 方法：建立存储连接
  2. disconnect 方法：断开存储连接
  3. getBackends 方法：获取存储后端
  4. getInfo 方法：获取系统信息
  5. isConnected 方法：检查连接状态
  6. healthCheck 方法：健康检查
typescript
  import { StorageManager } from
  './src/core/storage/manager.js';
  import type { StorageConfig } from
  './src/core/storage/types.js';

  // 1. 配置存储系统
  const config: StorageConfig = {
    cache: {
      type: 'redis',
      host: 'localhost',
      port: 6379,
      db: 0,
      keyPrefix: 'app:cache:'
    },
    database: {
      type: 'sqlite',
      path: './data/app.db'
    }
  };

  // 2. 创建并连接存储管理器
  async function initializeStorage() {
    const manager = new StorageManager(config);

    try {
      // 连接到存储后端（自动处理降级）
      const { cache, database } = await
  manager.connect();

      // 检查连接状态
      const info = manager.getInfo();
      console.log('Storage Status:', {
        cacheType: info.backends.cache.type,
        cacheFallback:
  info.backends.cache.fallback,
        databaseType:
  info.backends.database.type,
        databaseFallback:
  info.backends.database.fallback
      });

      return { manager, cache, database };
    } catch (error) {
      console.error('Failed to initialize
  storage:', error);
      throw error;
    }
  }

  // 3. 使用存储系统
  async function useStorage() {
    const { manager, cache, database } = await
  initializeStorage();

    try {
      // === 缓存操作（临时数据，支持TTL）===

      // 缓存用户会话（1小时过期）
      await cache.set('session:user123', {
        userId: '123',
        username: 'john',
        loginTime: Date.now()
      }, 3600);

      // 读取缓存
      const session = await
  cache.get('session:user123');
      console.log('Session:', session);

      // === 数据库操作（持久化数据）===

      // 保存用户配置（永久存储）
      await database.set('config:user123', {
        theme: 'dark',
        language: 'en',
        notifications: true
      });

      // 读取配置
      const config = await
  database.get('config:user123');
      console.log('User config:', config);

      // 列表操作 - 记录用户活动
      await database.append('activity:user123',
  {
        action: 'login',
        timestamp: Date.now(),
        ip: '192.168.1.1'
      });

      await database.append('activity:user123',
  {
        action: 'view_profile',
        timestamp: Date.now(),
        ip: '192.168.1.1'
      });

      // 获取最近的活动记录
      const activities = await
  database.getRange('activity:user123', 0, 10);
      console.log('Recent activities:',
  activities);

      // 查找所有用户配置键
      const configKeys = await
  database.list('config:');
      console.log('All config keys:',
  configKeys);

    } finally {
      // 清理：断开连接
      await manager.disconnect();
    }
  }

5.3、策略层的设计 ​

策略创建工厂，用于床和组装存储系统中的各种策略组件，它的核心作用是集中管理不同的策略创建逻辑，让系统能够灵活的切换和组合不同的存储行为策略

主要步骤如下：

  1. 创建了策略工厂，用于实例化策略方法
  2. 构建读策略，写策略等多种策略函数和模块
typescript
//策略工厂
import { ReadStrategy, ReadStrategyConfig } from '../interfaces/read-strategy.js';
import { WriteStrategy, WriteStrategyConfig } from '../interfaces/write-strategy.js';
import { HealthManager, HealthManagerConfig } from '../interfaces/health-manager.js';
import { WALManager } from '../interfaces/wal-manager.js';

// 策略实现导入
import { PrimaryFirstReadStrategy } from '../implementations/read/primary-first-read.js';
import { IdempotentWriteStrategy } from '../implementations/write/idempotent-write.js';
import { CircuitBreakerHealthManager } from '../implementations/health/circuit-breaker-health.js';
import { RedisStreamWALManager, RedisStreamWALConfig } from '../implementations/wal/redis-stream-wal.js';

/**
 * 策略工厂
 *
 * 负责创建和配置各种策略实例
 */
export class StrategyFactory {
    /**
     * 创建读取策略
     */
    static createReadStrategy(
        type: ReadStrategyType,
        config: ReadStrategyConfig,
        healthManager: HealthManager
    ): ReadStrategy {
        switch (type) {
            case 'primary-first':
                return new PrimaryFirstReadStrategy(config, healthManager);

            case 'cache-enhanced':
                // TODO: 实现缓存增强读策略
                throw new Error('Cache-enhanced read strategy not implemented yet');

            case 'failover':
                // TODO: 实现故障转移读策略
                throw new Error('Failover read strategy not implemented yet');

            default:
                throw new Error(`Unknown read strategy type: ${type}`);
        }
    }

    /**
     * 创建写入策略
     */
    static createWriteStrategy(
        type: WriteStrategyType,
        config: WriteStrategyConfig,
        healthManager: HealthManager
    ): WriteStrategy {
        switch (type) {
            case 'idempotent':
                return new IdempotentWriteStrategy(config, healthManager);

            case 'wal-first':
                // TODO: 实现WAL优先写策略
                throw new Error('WAL-first write strategy not implemented yet');

            case 'dual-write':
                // TODO: 实现双写策略
                throw new Error('Dual-write strategy not implemented yet');

            default:
                throw new Error(`Unknown write strategy type: ${type}`);
        }
    }

    /**
     * 创建健康管理器
     */
    static createHealthManager(
        type: HealthManagerType,
        config: HealthManagerConfig
    ): HealthManager {
        switch (type) {
            case 'circuit-breaker':
                return new CircuitBreakerHealthManager(config);

            case 'simple':
                // TODO: 实现简单健康管理器
                throw new Error('Simple health manager not implemented yet');

            default:
                throw new Error(`Unknown health manager type: ${type}`);
        }
    }

    /**
     * 创建WAL管理器
     */
    static createWALManager(
        type: WALManagerType,
        config: WALManagerConfig
    ): WALManager {
        switch (type) {
            case 'redis-stream':
                return new RedisStreamWALManager(config as RedisStreamWALConfig);

            case 'file':
                // TODO: 实现文件WAL
                throw new Error('File WAL manager not implemented yet');

            case 'in-memory':
                // TODO: 实现内存WAL（仅用于开发）
                throw new Error('In-memory WAL manager not implemented yet');

            default:
                throw new Error(`Unknown WAL manager type: ${type}`);
        }
    }

    /**
     * 创建完整的策略集合
     */
    static createStrategySet(config: StrategySetConfig): StrategySet {
        // 1. 创建健康管理器（其他策略依赖它）
        const healthManager = this.createHealthManager(
            config.health.type,
            config.health.config
        );

        // 2. 创建读写策略
        const readStrategy = this.createReadStrategy(
            config.read.type,
            config.read.config,
            healthManager
        );

        const writeStrategy = this.createWriteStrategy(
            config.write.type,
            config.write.config,
            healthManager
        );

        // 3. 创建WAL管理器（可选）
        let walManager: WALManager | undefined;
        if (config.wal) {
            walManager = this.createWALManager(
                config.wal.type,
                config.wal.config
            );
        }

        return {
            readStrategy,
            writeStrategy,
            healthManager,
            walManager
        };
    }
}

// 类型定义
export type ReadStrategyType = 'primary-first' | 'cache-enhanced' | 'failover';
export type WriteStrategyType = 'idempotent' | 'wal-first' | 'dual-write';
export type HealthManagerType = 'circuit-breaker' | 'simple';
export type WALManagerType = 'redis-stream' | 'file' | 'in-memory';

export interface StrategySetConfig {
    read: {
        type: ReadStrategyType;
        config: ReadStrategyConfig;
    };
    write: {
        type: WriteStrategyType;
        config: WriteStrategyConfig;
    };
    health: {
        type: HealthManagerType;
        config: HealthManagerConfig;
    };
    wal?: {
        type: WALManagerType;
        config: WALManagerConfig;
    };
}

export interface StrategySet {
    readStrategy: ReadStrategy;
    writeStrategy: WriteStrategy;
    healthManager: HealthManager;
    walManager?: WALManager;
}

export type WALManagerConfig = RedisStreamWALConfig | FileWALConfig | InMemoryWALConfig;

// 各种WAL配置类型
export interface FileWALConfig {
    filePath: string;
    maxFileSize: number;
    rotateOnSize: boolean;
    flushIntervalMs?: number;
}

export interface InMemoryWALConfig {
    maxEntries: number;
    flushIntervalMs?: number;
}
typescript
//读策略接口设计 - read-strategy
export interface ReadStrategy {
    /**
     * 执行读取操作
     * @param key 要读取的键
     * @param managers 可用的存储管理器集合
     * @returns 读取的数据
     */
    execute(key: string, managers: StorageManagerSet): Promise<any>;

    /**
     * 策略名称
     */
    readonly name: string;

    /**
     * 策略配置
     */
    readonly config: ReadStrategyConfig;
}

export interface ReadStrategyConfig {
    /** 是否将空结果视为失败 */
    treatEmptyAsFailure?: boolean;

    /** 最大重试次数 */
    maxRetries?: number;

    /** 重试延迟(ms) */
    retryDelay?: number;

    /** 是否启用缓存合并 */
    enableCacheMerge?: boolean;

    /** 读取超时时间(ms) */
    timeout?: number;
}

export interface ReadContext {
    key: string;
    managers: StorageManagerSet;
    attempt: number;
    startTime: number;
    metadata?: Record<string, any>;
}

export interface StorageManagerSet {
    primary: StorageManager;
    backup?: StorageManager;
    cache?: StorageManager;
}


//读策略方法的实际实现
import {
    ReadStrategy,
    ReadStrategyConfig,
    ReadContext,
    StorageManagerSet
} from '../interfaces/read-strategy.js';
import { HealthManager } from '../interfaces/health-manager.js';

/**
 * 主存储优先读取策略
 *
 * 策略：
 * 1. 优先尝试主存储
 * 2. 主存储失败或无数据时，尝试备用存储
 * 3. 支持熔断器模式，避免频繁访问故障存储
 */
export class PrimaryFirstReadStrategy implements ReadStrategy {
    readonly name = 'primary-first-read';

    constructor(
        public readonly config: ReadStrategyConfig,
        private healthManager: HealthManager
    ) {}

    async execute(key: string, managers: StorageManagerSet): Promise<any> {
        const context: ReadContext = {
            key,
            managers,
            attempt: 1,
            startTime: Date.now()
        };

        // 策略1: 尝试主存储
        const primaryResult = await this.tryPrimary(context);
        if (primaryResult.success) {
            return primaryResult.data;
        }

        // 策略2: 主存储失败，尝试备用存储
        if (managers.backup) {
            const backupResult = await this.tryBackup(context);
            if (backupResult.success) {
                return backupResult.data;
            }
        }

        // 策略3: 都失败了，抛出错误
        throw new Error(`All storage backends failed for key: ${key}`);
    }

    private async tryPrimary(context: ReadContext): Promise<StorageResult> {
        if (!this.healthManager.isHealthy('primary')) {
            return { success: false, reason: 'primary-unhealthy' };
        }

        try {
            const backends = context.managers.primary.getBackends();
            if (!backends) {
                throw new Error('Primary storage not connected');
            }

            const result = await this.executeWithTimeout(
                () => backends.database.get(context.key),
                this.config.timeout || 5000
            );

            // 配置决定：空结果是否视为失败
            if (result === null && this.config.treatEmptyAsFailure) {
                throw new Error('Primary returned empty result');
            }

            // 记录成功
            this.healthManager.markSuccess('primary', 'read', Date.now() - context.startTime);

            return { success: true, data: result };

        } catch (error) {
            // 记录失败
            this.healthManager.markFailure('primary', error as Error, 'read');

            return {
                success: false,
                reason: 'primary-failed',
                error: (error as Error).message
            };
        }
    }

    private async tryBackup(context: ReadContext): Promise<StorageResult> {
        if (!this.healthManager.isHealthy('backup')) {
            return { success: false, reason: 'backup-unhealthy' };
        }

        try {
            const backends = context.managers.backup!.getBackends();
            if (!backends) {
                throw new Error('Backup storage not connected');
            }

            const result = await this.executeWithTimeout(
                () => backends.database.get(context.key),
                this.config.timeout || 5000
            );

            // 记录成功
            this.healthManager.markSuccess('backup', 'read', Date.now() - context.startTime);

            return { success: true, data: result };

        } catch (error) {
            // 记录失败
            this.healthManager.markFailure('backup', error as Error, 'read');

            return {
                success: false,
                reason: 'backup-failed',
                error: (error as Error).message
            };
        }
    }

    private async executeWithTimeout<T>(
        operation: () => Promise<T>,
        timeoutMs: number
    ): Promise<T> {
        return Promise.race([
            operation(),
            new Promise<T>((_, reject) => {
                setTimeout(() => reject(new Error('Operation timeout')), timeoutMs);
            })
        ]);
    }
}

interface StorageResult {
    success: boolean;
    data?: any;
    reason?: string;
    error?: string;
}

策略工厂中的方法：

  1. 读取策略：根据传入的参数，调用策略层中的相应的读取策略
  2. 写入策略：根据传入的参数，调用写入层的相应的写入策略
  3. 健康管理器：监控存储后端的健康状态，应对出现断连状态时及时察觉和更换组件
  4. WAL 管理器：预写入日志
  5. 创建完整策略集合：该方法一次性创建所有需要的策略组件，并处理它们之间的依赖关系

5.4、应用层的设计 ​

typescript
import { StorageManager } from '../../../../../src/core/storage/manager.js';  // 引用现有的StorageManager
import { ReadStrategy } from '../interfaces/read-strategy.js';
import { WriteStrategy } from '../interfaces/write-strategy.js';
import { HealthManager } from '../interfaces/health-manager.js';
import { WALManager } from '../interfaces/wal-manager.js';

/**
 * 策略化存储管理器
 *
 * 职责：
 * 1. 协调多个StorageManager实例
 * 2. 注入和管理各种策略
 * 3. 提供统一的高级存储接口
 * 4. 维护连接生命周期
 */
export class StrategicStorageManager {
    private managers: StorageManagerSet;
    private connected = false;

    constructor(
        private config: StrategicStorageConfig,
        private readStrategy: ReadStrategy,
        private writeStrategy: WriteStrategy,
        private healthManager: HealthManager,
        private walManager?: WALManager
    ) {
        this.managers = {
            primary: new StorageManager(config.primary),
            backup: config.backup ? new StorageManager(config.backup) : undefined,
            cache: config.cache ? new StorageManager(config.cache) : undefined
        };
    }

    /**
     * 连接所有存储管理器
     */
    async connect(): Promise<void> {
        if (this.connected) return;

        try {
            // 并行连接所有管理器
            const connections = [
                this.managers.primary.connect()
            ];

            if (this.managers.backup) {
                connections.push(this.managers.backup.connect());
            }

            if (this.managers.cache) {
                connections.push(this.managers.cache.connect());
            }

            await Promise.all(connections);

            // 启动WAL和健康检查
            if (this.walManager) {
                await this.walManager.startFlushWorker();
            }

            this.healthManager.startHealthCheck();

            this.connected = true;
            console.log('Strategic storage manager connected successfully');

        } catch (error) {
            console.error('Failed to connect strategic storage manager:', error);
            throw error;
        }
    }

    /**
     * 断开所有连接
     */
    async disconnect(): Promise<void> {
        if (!this.connected) return;

        try {
            // 停止后台服务
            this.healthManager.stopHealthCheck();

            if (this.walManager) {
                await this.walManager.stopFlushWorker();
            }

            // 断开所有管理器
            const disconnections = [
                this.managers.primary.disconnect()
            ];

            if (this.managers.backup) {
                disconnections.push(this.managers.backup.disconnect());
            }

            if (this.managers.cache) {
                disconnections.push(this.managers.cache.disconnect());
            }

            await Promise.all(disconnections);

            this.connected = false;
            console.log('Strategic storage manager disconnected');

        } catch (error) {
            console.error('Error during strategic storage manager disconnect:', error);
            throw error;
        }
    }

    /**
     * 策略化读取操作
     */
    async get(key: string): Promise<any> {
        this.ensureConnected();
        return await this.readStrategy.execute(key, this.managers);
    }

    /**
     * 策略化写入操作
     */
    async set(key: string, value: any): Promise<void> {
        this.ensureConnected();
        return await this.writeStrategy.execute(key, value, this.managers, this.walManager);
    }

    /**
     * 批量读取操作
     */
    async mget(keys: string[]): Promise<Record<string, any>> {
        this.ensureConnected();

        const results: Record<string, any> = {};

        // 并行读取所有键
        const promises = keys.map(async key => {
            try {
                const value = await this.readStrategy.execute(key, this.managers);
                return { key, value, success: true };
            } catch (error) {
                return { key, error, success: false };
            }
        });

        const completed = await Promise.allSettled(promises);

        for (const result of completed) {
            if (result.status === 'fulfilled' && result.value.success) {
                results[result.value.key] = result.value.value;
            }
        }

        return results;
    }

    /**
     * 批量写入操作
     */
    async mset(entries: Record<string, any>): Promise<void> {
        this.ensureConnected();

        // 并行写入所有条目
        const promises = Object.entries(entries).map(([key, value]) =>
            this.writeStrategy.execute(key, value, this.managers, this.walManager)
        );

        await Promise.all(promises);
    }

    /**
     * 删除操作
     */
    async delete(key: string): Promise<void> {
        this.ensureConnected();

        // 使用写入策略处理删除操作
        await this.writeStrategy.execute(key, null, this.managers, this.walManager);
    }

    /**
     * 检查键是否存在
     */
    async exists(key: string): Promise<boolean> {
        try {
            const value = await this.get(key);
            return value !== null && value !== undefined;
        } catch {
            return false;
        }
    }

    /**
     * 获取健康状态
     */
    getHealthStatus(): Record<string, any> {
        return {
            connected: this.connected,
            backends: this.healthManager.getAllHealthStats(),
            walStats: this.walManager?.getStats()
        };
    }

    /**
     * 获取存储管理器（用于直接访问）
     */
    getStorageManagers(): StorageManagerSet {
        return this.managers;
    }

    /**
     * 获取底层backend（保持兼容性）
     */
    getBackends(type: 'primary' | 'backup' | 'cache' = 'primary') {
        const manager = this.managers[type];
        return manager ? manager.getBackends() : null;
    }

    /**
     * 强制刷新WAL
     */
    async flushWAL(): Promise<void> {
        if (this.walManager) {
            const unflushed = await this.walManager.getUnflushedEntries();
            console.log(`Flushing ${unflushed.length} WAL entries`);
            // WAL刷新逻辑会在后台工作进程中处理
        }
    }

    /**
     * 清理过期的WAL条目
     */
    async cleanupWAL(beforeTimestamp?: number): Promise<number> {
        if (!this.walManager) return 0;

        const timestamp = beforeTimestamp || Date.now() - 24 * 60 * 60 * 1000; // 24小时前
        return await this.walManager.cleanup(timestamp);
    }

    private ensureConnected(): void {
        if (!this.connected) {
            throw new Error('Strategic storage manager not connected');
        }
    }
}

export interface StrategicStorageConfig {
    primary: StorageConfig;
    backup?: StorageConfig;
    cache?: StorageConfig;
}

export interface StorageManagerSet {
    primary: StorageManager;
    backup?: StorageManager;
    cache?: StorageManager;
}

// 从现有项目导入配置类型
interface StorageConfig {
    database: {
        type: 'postgresql' | 'sqlite' | 'redis' | 'in-memory';
        [key: string]: any;
    };
    cache?: {
        type: 'redis' | 'in-memory';
        [key: string]: any;
    };
}
  1. connect 方法：连接所有存储器
  2. disconnect 方法：断开所有连接
  3. get 方法：策略化读取，其调用的是策略层的方法
  4. set 方法：策略化写入，其调用的也是策略层的方法
  5. delete 方法：删除数据
  6. mget 方法：批量读取-并行运行
  7. mset 方法：批量写入-并行运行
  8. exists 方法：检查键是否存在
  9. getHealthStatus：获取健康状态
  10. flushWAL 方法：强制刷新 WAL
  11. cleanupWAL 方法：清理过期 WAL
  12. getStorageManagers 方法：提供访问存储管理器
  13. getBackends 方法：获取后端，可以获取特定后端

应用层结合策略层的使用就非常的简单，借助策略工厂实例化策略模块，供应用层调用

typescript
/**
 * 基础使用示例
 *
 * 展示如何使用策略化存储管理器进行基本的读写操作
 */

async function basicUsageExample() {
    console.log('=== 基础使用示例 ===');

    // 1. 配置存储
    const storageConfig: StrategicStorageConfig = {
        // 主存储：PostgreSQL
        primary: {
            database: {
                type: 'postgresql',
                url: 'postgresql://user:pass@localhost:5432/cipher_primary'
            }
        },
        // 备用存储：SQLite
        backup: {
            database: {
                type: 'sqlite',
                path: './data',
                database: 'cipher-backup.db'
            }
        }
    };

    // 2. 配置策略
    const strategyConfig: StrategySetConfig = {
        read: {
            type: 'primary-first',
            config: {
                treatEmptyAsFailure: false,
                timeout: 5000
            }
        },
        write: {
            type: 'idempotent',
            config: {
                enableIdempotency: true,
                timeout: 5000
            }
        },
        health: {
            type: 'circuit-breaker',
            config: {
                failureThreshold: 5,
                failureWindow: 60000,
                circuitOpenDuration: 30000,
                recoverySuccessThreshold: 3,
                healthCheckInterval: 10000,
                maxFailureHistory: 100,
                latencyWindowSize: 50
            }
        }
    };

    // 3. 创建策略集合
    const strategies = StrategyFactory.createStrategySet(strategyConfig);

    // 4. 创建管理器 - 应用层的创建
    const manager = new StrategicStorageManager(
        storageConfig,
        strategies.readStrategy,
        strategies.writeStrategy,
        strategies.healthManager,
        strategies.walManager
    );

    try {
        // 5. 连接
        await manager.connect();
        console.log('✅ 存储管理器已连接');

        // 6. 基本写入操作
        await manager.set('user:123', {
            id: 123,
            name: 'John Doe',
            email: 'john@example.com',
            createdAt: new Date().toISOString()
        });
        console.log('✅ 用户数据已写入');

        // 7. 基本读取操作
        const user = await manager.get('user:123');
        console.log('✅ 用户数据已读取:', user);

        // 8. 批量操作
        await manager.mset({
            'session:abc': { userId: 123, token: 'xyz', expiresAt: Date.now() + 3600000 },
            'session:def': { userId: 456, token: 'uvw', expiresAt: Date.now() + 3600000 }
        });
        console.log('✅ 批量写入完成');

        const sessions = await manager.mget(['session:abc', 'session:def']);
        console.log('✅ 批量读取完成:', sessions);

        // 9. 检查健康状态
        const health = manager.getHealthStatus();
        console.log('✅ 健康状态:', JSON.stringify(health, null, 2));

    } catch (error) {
        console.error('❌ 操作失败:', error);
    } finally {
        // 10. 清理
        await manager.disconnect();
        console.log('✅ 存储管理器已断开');
    }
}

六、最佳实践 ​

  • 使用快速、低延迟的数据库作为主数据库，例如 Redis、Postgres
  • 使用一个高度耐用、可能比较慢的数据库进行备份，例如 S3，SQlit，云数据库
  • 在生产环境中，考虑使用持久的 WAL，而不仅仅是内存中，以实现最大程度的持久性
